Schema Sync

schema-sync is a companion CLI that reconciles a live database schema with a project's Kotlin entity sources. It stages two kinds of change, both auditable and committable:

• additive SQL migrations (CREATE TABLE / ALTER TABLE … ADD) for fields the entities have but the database doesn't, and
• live in-place edits to your .kt entity files, plus brand-new entity files for tables that don't have a matching class yet.

The same engine drives two ways of consuming those changes:

• Interactive TUI (the default) — a full-screen workspace that runs natively in any modern terminal (Linux, macOS, Windows) and walks tables and columns one slot at a time. The Kotlin side is not a text patch: schema-sync embeds the full Kotlin compiler (kotlin-compiler-embeddable) and rewrites entity classes through PSI, so existing imports, formatting, comments, constructor style, and by db() delegate conventions in the file are preserved. New properties are spliced into the right class body with the correct supertype, the project's naming policy, and FK references resolved against your existing entities.
• Headless mode (activated by any --export-* flag) — runs the same introspection and diff and exits without ever drawing the TUI. The migration is written exactly as in the interactive flow; the Kotlin edits land as a git apply-ready unified-diff patch instead of being applied to the source files directly. Intended for pre-commit hooks, CI gates, and one-shot regenerations where a human review step is mandatory.

Overview

Given a JDBC URL and one or more Kotlin source roots, schema-sync:

1. introspects every table and view, collecting columns, types, nullability, defaults, and primary-key membership;
2. parses the Kotlin sources with the embeddable Kotlin compiler (PSI), picking up classes annotated with @DbTable, @Table, @Entity, or carrying any @DbField / @Id property;
3. pairs each entity with its DB table by lower-cased last-segment of the table key (schema is treated as opaque qualification), and computes a per-column delta: SYNCED, DIFF (type / default / nullability), DB_ONLY, or ENTITY_ONLY;
4. trains a per-category n-gram classifier on the columns that are already SYNCED — so the slot suggestions for new columns reflect your naming conventions, not a hardcoded dictionary;
5. emits the SQL/Kotlin artefacts you ask for.

Slots, defaults, and the classifier

The reason schema-sync produces consistent DDL for String, Int, and BigDecimal properties is that it doesn't pick types ad-hoc. Two profile sections in .schema-sync.toml drive everything.

Slots

A slot is a named DDL template inside one of three categories — TEXT, INTEGRAL, DECIMAL. A category can hold up to nine slots; exactly one in each is marked default = true and is used as the fallback when the classifier has no signal for a column name.

[[slots.text]]
name = "name"
length = 50

[[slots.text]]
name = "line"
length = 200
default = true

[[slots.integral]]
name = "int"
digits = 10
default = true

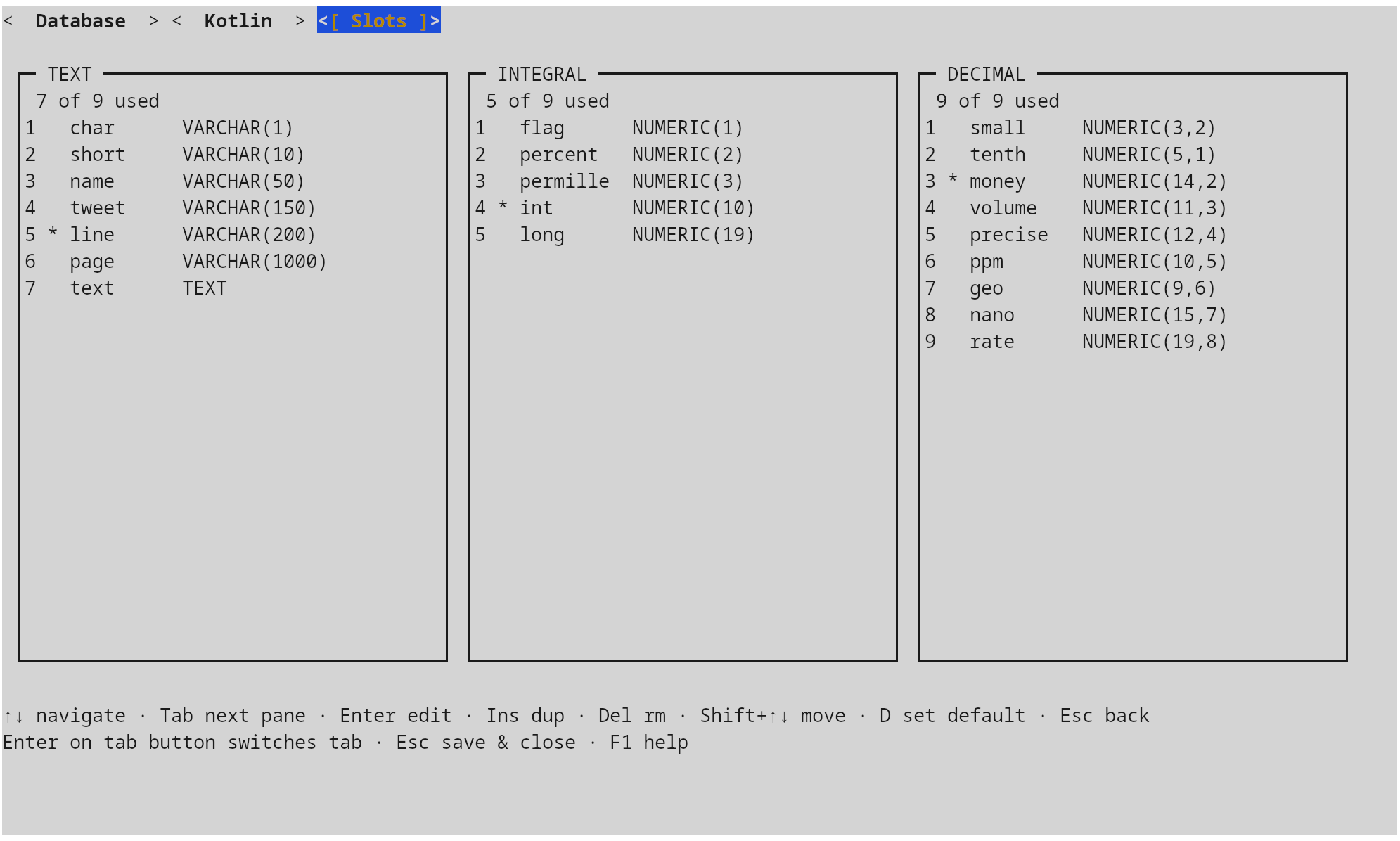

Slots are edited interactively from the configuration window (Configuration window) — three panes, one per category; the * next to a row marks the current default.

Defaults

The defaults profile maps deterministic Kotlin types (Boolean, LocalDate, Instant, UUID, ByteArray, primary-key flavours, …) to per- dialect DDL strings. The shipped defaults cover SQLite, PostgreSQL, MySQL, MariaDB, Oracle, and MSSQL; project-local overrides land in the same TOML under the matching [defaults.<dialect>] table.

A second group, autoDefault*, controls the SQL DEFAULT literal used when a NOT NULL column lacks an entity initializer; setting one to an empty string disables auto-defaulting and the migration drops a TODO instead.

Classifier

For any column whose Kotlin type maps to a slot category, the classifier suggests the best slot. It is trained at startup from the project's own already-synced columns: each (category, slot, columnName) triple becomes a Lucene document indexed with character n-grams (3–5), lower-cased and ASCII- folded. The pipeline is language-agnostic — customer, kunde, and pelatis look the same to the index, so multi-language schemas converge instead of fighting the tool.

When the classifier has no signal — a brand-new column whose name doesn't resemble any existing one — schema-sync falls back to the slot marked default = true for that category. There is always a deterministic answer. Bulk classification across hundreds of columns at once is covered in Bulk classification below.

TUI workflow

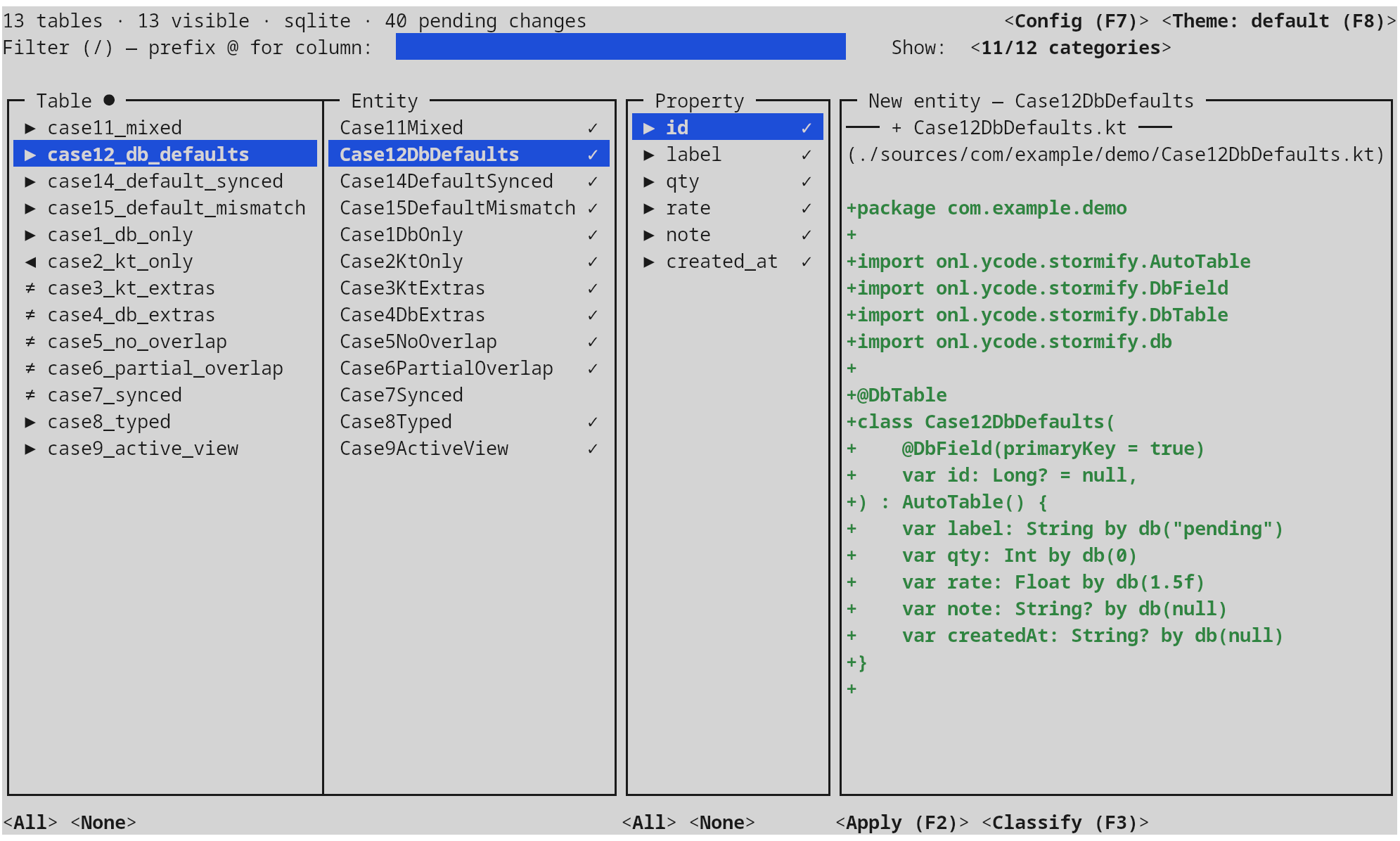

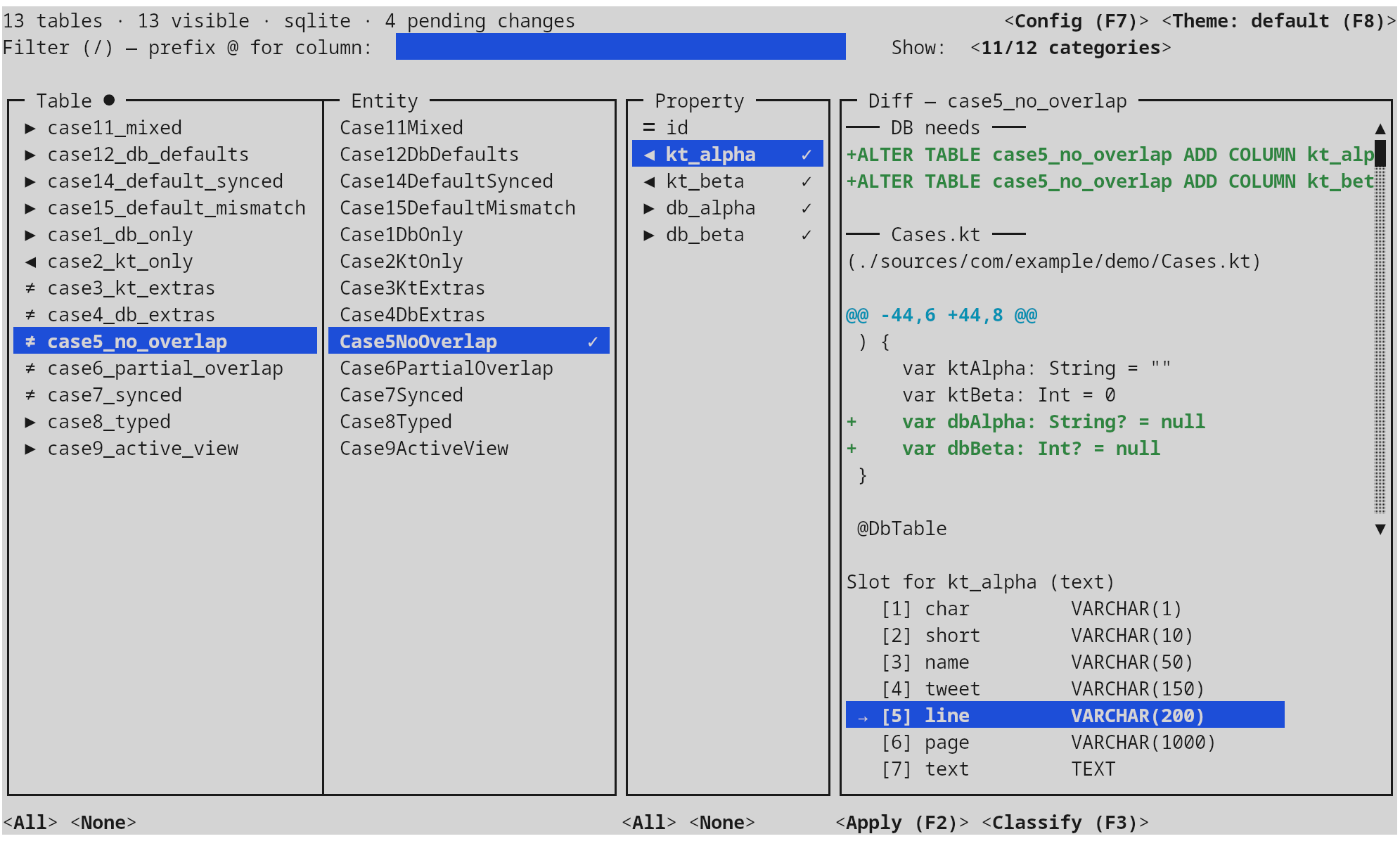

The main window is a four-pane layout: tables, entities, properties, diff preview. Selection in the table pane drives entities; selection of an entity drives the property pane; selection of a property drives the diff and the slot picker beneath it. The header shows running totals (tables, columns, pending changes), the current category filter, and the active theme; the footer rotates through the contextual key bindings.

Navigation

Key	Action
↑ ↓	Navigate within the current pane
← →	Switch panes (tables / properties / diff)
Tab	Move focus across panes
/	Free-form filter (table / entity / column name)
1–9	In the diff pane: pick the slot for the current entity-only column
Space	In the properties pane: cycle the action for the current row (insert / delete / none)
Delete	Clear the action on the current row
F1 / ?	Help with the full keymap
F2	Apply — see below
F3	Bulk classify entity-only fields by category, with a name filter and a 1–9 slot picker
F7	Configuration — slots and per-dialect defaults (see Slots, defaults, and the classifier)
F8	Cycle the colour theme (Shift-F8 backwards)
Esc / q	Quit (or back out of a sub-window)

Filtering

Three independent filters narrow what shows up in the property pane and what eventually reaches the migration / patch writers. The same three exist in both the TUI (interactive controls) and headless mode (CLI flags).

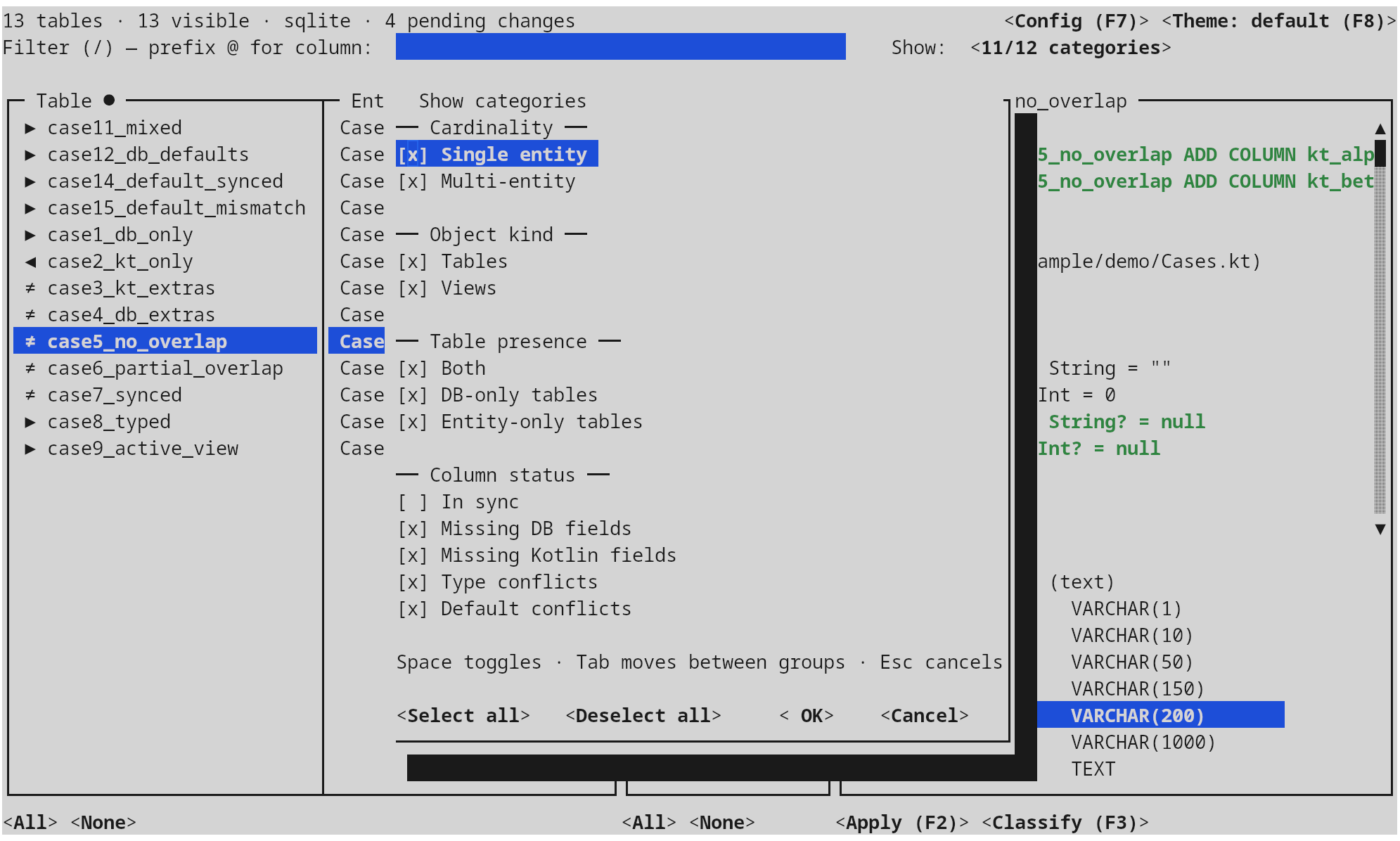

Category filter — Show categories

Opened from the Show: button at the top right of the main window. Four mutually independent groups; a row passes when every group with at least one checked option contributes at least one match (AND across groups, OR within a group).

Group	Options (token)	What it asks
Object kind	tables, views	Restrict by what the introspector reports — physical tables vs. SQL views. Untick views to keep the work focused on writable tables only.
Cardinality	single, multi	One Kotlin class per table is the common case; multi flags slots claimed by more than one entity (multi-view, refactor leftovers, synonym aliases). Pick multi alone to audit those in isolation.
Table presence	both, db-only, entity-only	Where the slot exists. both = the table exists in both DB and entities (and so columns may differ). db-only = a table without a Kotlin class — the candidates for CREATE TABLE-by-introspection elsewhere, but here meaning needs an entity scaffold. entity-only = an entity whose table doesn't exist yet — the candidates for CREATE TABLE migrations. The three are mutually exclusive and exhaustive.
Column status	in-sync, missing-db, missing-kt, type-conflicts, default-conflicts	Only meaningful for both-presence rows. in-sync = column matches; missing-db = column is on the entity but not the table (→ ALTER TABLE … ADD); missing-kt = column is in the DB but not the entity (→ new property splice); type-conflicts = same column name, incompatible types; default-conflicts = same column, different DEFAULT literal. The four DIFF subdivisions can overlap and you tick whichever union you want to attack.

Default selection: every option in every group except in-sync — the view you want when you open the tool to fix something. Examples:

• I want to add new columns the entities have but the DB doesn't: tick tables only, both only, missing-db only.
• I want to discover DB columns my entities are silently ignoring: tick tables, both, missing-kt.
• I want a clean read-only audit of multi-claim slots: tick tables + views, multi, leave column-status untouched (the AND vacuously passes for non-DIFF rows).

In headless mode the same selection is one flag:

--categories tables,both,missing-db
--categories all          # every token, including in-sync
# (omit the flag)         # default = every token except in-sync

Free-form text filter — /

Live substring match driven by the filter box at the top of the main window (focus it with /, or just start typing on a non-input pane). Default scope: the table key and the entity class name. Prefix the query with @ to switch to column-name matching across every column delta in the slot (the @ was chosen because it doesn't clash with the bulk-classify filter syntax — !, :, *).

Examples — assuming case5_no_overlap exists with a kt_alpha column:

Type	Matches
case5	the case5_no_overlap table row (table-name match)
Overlap	every case*Overlap* table (entity-name match, case-insensitive)
@kt_alpha	every slot that has a kt_alpha column
@id	every slot with any column whose name contains id

In headless mode the equivalents are two globs that AND with the category filter and OR within themselves:

Flag	Matches	Repeatable
--filter-entity <glob>	Table key or class name	✓
--filter-property <glob>	Column name	✓

Glob syntax: * (any chars), ? (one char), [set]; case-insensitive. --filter-entity 'case*Overlap*' --filter-property '!kt_*' is not valid (no negation in CLI globs) — express exclusions via the category filter or narrow the entity glob instead.

Bulk-classify filter

The bulk-classify view has its own text-filter, narrowing just the column list of the active category. It supports negation (!), slot-name matching (:), and wildcards (*); see Bulk classification for the full grammar. There is no CLI counterpart for this filter — bulk classification is interactive only.

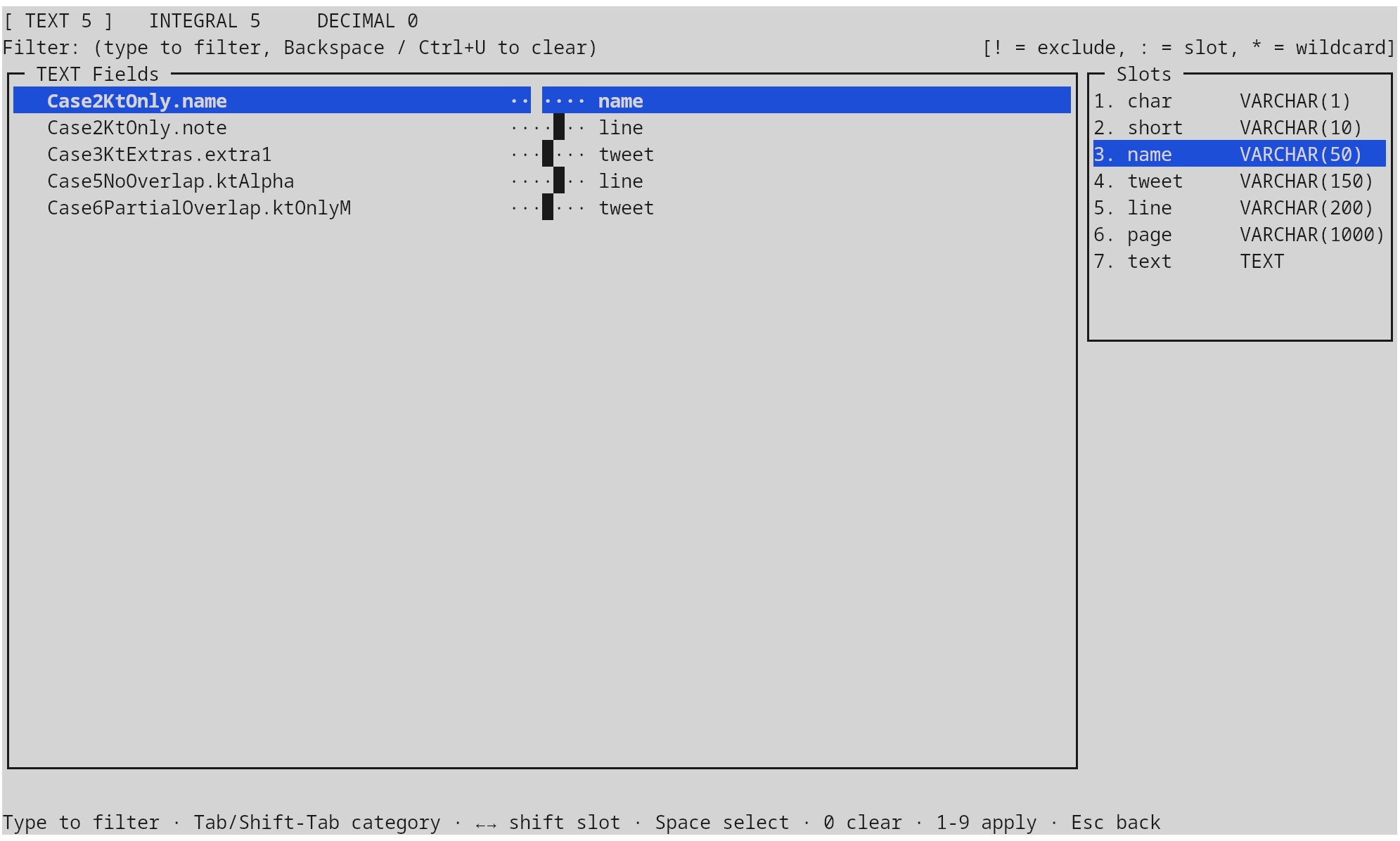

Bulk classification

The bulk-classify view (opened with F3) groups every classifiable column by category (TEXT, INTEGRAL, DECIMAL), shows the slot panel pinned to the right, and lets a single keystroke apply a slot to a whole filtered group. Filter syntax: a plain prefix narrows by name, ! excludes, : switches focus to the slots pane, * is wildcard, digits 1–9 apply that slot to every visible row, 0 clears the assignment.

Configuration window

Opened with F7, a tabbed editor combining everything that is normally hand-edited in .schema-sync.toml:

• Slots — the three category panes from Slots, defaults, and the classifier, with Ins to duplicate, Del to remove, Shift+↑↓ to reorder, D to flip the per-category default, and Enter to edit.

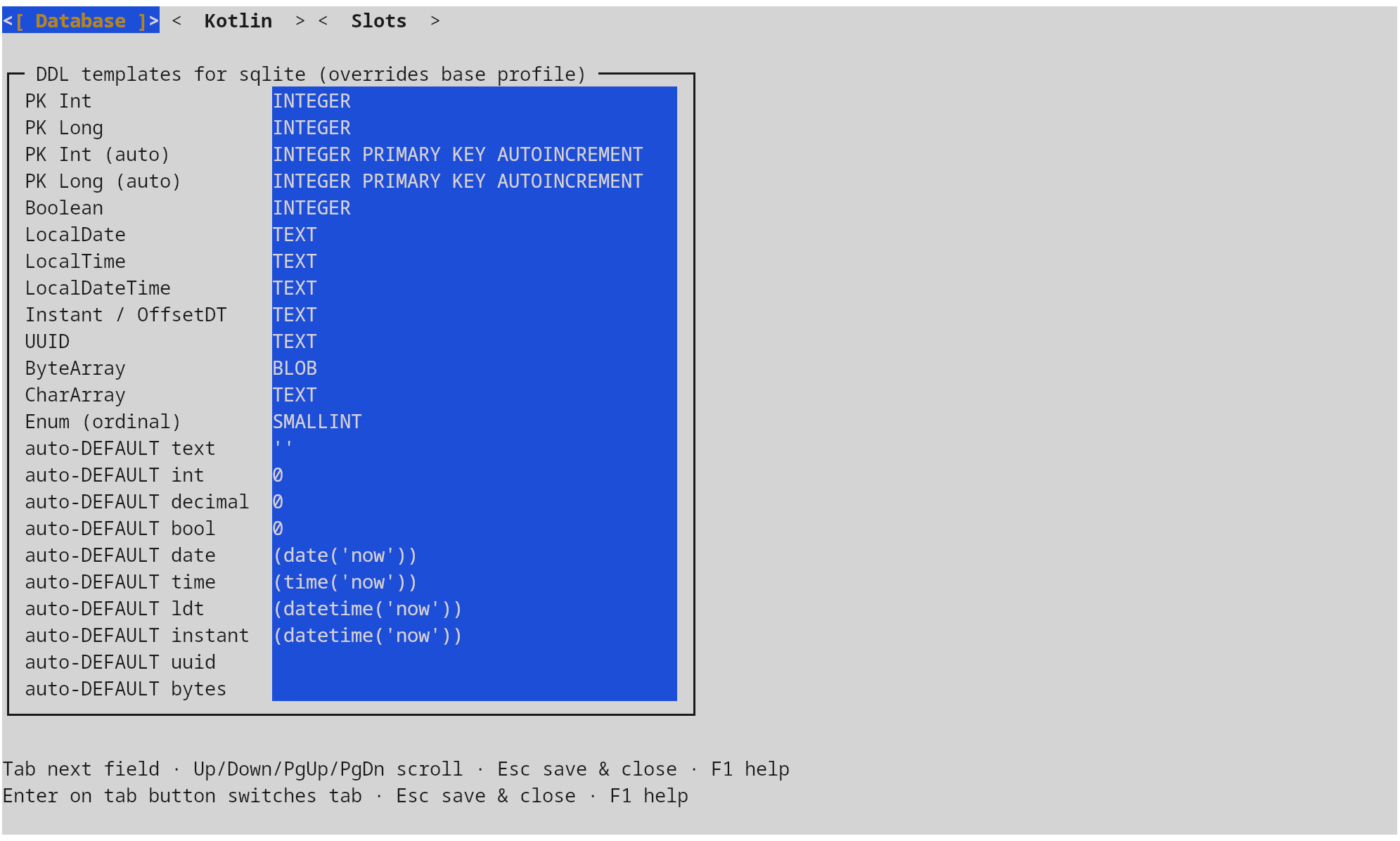

• Database — per-dialect DDL templates (Boolean, temporal types, blob / clob, UUID, primary-key flavours) and the matching auto-DEFAULT literals used when a NOT NULL column lacks an entity initializer.
• Kotlin — naming policy (LOWER_CASE_WITH_UNDERSCORES, UPPER_CASE_WITH_UNDERSCORES, CAMEL_CASE), preferred Kotlin types for each category, and whether to retrofit AutoTable() on existing entities.

Esc saves and closes, so the file on disk always matches what was on screen. A help sheet is one F1 away in every sub-window.

Applying changes

When the staged actions are ready, F2 opens a tabbed full-screen confirmation:

• Entities tab — the patched source of every affected .kt file plus the contents of every brand-new entity file, side-by-side with the original via the same renderer the in-pane diff uses, so what you see is byte- identical to what will be written. An editable Entities dir: field at the top sets where new entity files land; the value is persisted to .schema-sync.toml.
• SQL tab — the full migration.sql text, with an editable path field (also persisted) for the destination file.

Confirming writes both: the migration file is created at the chosen path, and existing entity files are rewritten in place through PSI — comments, whitespace, member ordering, and unrelated declarations are left alone; only the targeted edits (new properties, new imports, optional AutoTable() supertype) are applied. New entity files are created next to the most common existing entity location, with the right package, supertype, and naming- policy-correct property names.

After a successful apply the tool re-introspects automatically, so you can chain a second pass without restarting.

Headless / CI mode

Pass any --export-* flag and the TUI never starts. The same engine runs the introspection and diff, then writes the requested artefacts and exits. Stderr streams progress, stdout is reserved for nothing — both can be piped in CI without surprises.

schema-sync \
  --url "jdbc:postgresql://db.local:5432/app" \
  --user "$DB_USER" --password "$DB_PASS" \
  --sources src/main/kotlin --sources src/main/kotlin-gen \
  --export-sql build/migrations/$(date +%Y%m%d).sql \
  --export-kt  build/entities.patch

Apply the Kotlin patch with git apply build/entities.patch. The patch uses a/ + b/ prefixes and /dev/null for new files, so it round-trips through git apply without -p0.

Filters

Three flag families gate which rows reach the writers:

Flag	What it filters	Repeatable
--categories <list>	Comma-separated tokens — see below; or all	—
--filter-entity <glob>	Matches tableKey or class name (case-insensitive)	✓
--filter-property <glob>	Matches column name (case-insensitive)	✓

Glob syntax supports *, ?, and [set]. Filters compose as AND across families and OR within a family.

Recognised category tokens (alias of the same Show categories popup):

tables, views,
in-sync, missing-db, missing-kt, type-conflicts, default-conflicts,
both, db-only, entity-only,
single, multi

Default = every token except in-sync. --categories all selects everything.

Connection persistence

Connection details are written to .schema-sync.toml in the current directory on first use. Subsequent runs need only the directory; --url, --user, --password overwrite the stored values. A team-wide TOML committed to the repo (with the sensitive bits replaced or read from environment variables) gives every contributor identical slot, defaults, and classifier behaviour.

Configuration file

The shipped default-config.toml is the seed. On first launch it is copied verbatim to .schema-sync.toml in the working directory; from that point on the file is owned by the project and the tool never overwrites edits.

The file has three top-level sections:

• namingPolicy — how Kotlin property names map to column names. Values: LOWER_CASE_WITH_UNDERSCORES (default), UPPER_CASE_WITH_UNDERSCORES, CAMEL_CASE. Match what your Stormify runtime is configured for.
• [defaults] — the base profile, with [defaults.<dialect>] overrides for each of the six supported dialects.
• [[slots.<category>]] — the per-category slot tables (text, integral, decimal).

Supported databases

Drivers bundled in the fatJar:

Database	URL prefix
SQLite	jdbc:sqlite:<path>
PostgreSQL	jdbc:postgresql://<host>[:<port>]/<db>
MySQL	jdbc:mysql://<host>[:<port>]/<db>
MariaDB	jdbc:mariadb://<host>[:<port>]/<db>
Oracle	jdbc:oracle:thin:@<host>:<port>:<sid>
MS SQL Server	jdbc:sqlserver://<host>[:<port>];databaseName=<db>

Per-dialect quirks the migration generator handles for you:

• MSSQL drops the COLUMN keyword in ALTER TABLE … ADD.
• SQLite cannot ADD a NOT NULL column without a DEFAULT; when no default can be inferred, a TODO line is emitted instead of broken SQL.
• SQLite / MSSQL primary-key templates that already include PRIMARY KEY aren't duplicated downstream.
• Oracle defaults bump defaultRowPrefetch to 1000 at startup so the data- dictionary scan completes in seconds rather than minutes on remote schemas.

Running

Pre-built per-OS installers are produced by CI on every release tag and attached to the matching GitHub Release; no JDK is required on the end-user machine because each installer bundles a stripped jlink runtime image.

Platform	Format	Notes
Linux x86_64	.AppImage	universal, glibc 2.31+; needs FUSE on the host
Windows x64	.zip	unsigned (run schema-sync.exe from the unpacked folder; SmartScreen prompts on first run)
macOS (Apple Silicon + Intel)	.tar.gz	signed and notarized .app bundle plus a CLI wrapper script

Build them yourself with gradle :schema-sync:installer (host-OS only — jpackage cannot cross-compile), or build the fully-bundled fatJar:

gradle :schema-sync:fatJar
java -jar schema-sync/build/libs/schema-sync-<version>-all.jar --help

The fatJar embeds every JDBC driver and runs on any JDK 11+.
